Cleaning Equipment

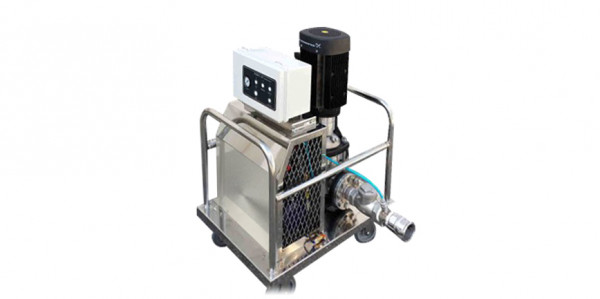

CIRCULAR

Circular is the most advanced Chemical Cleaning equipment with Bubble Jet technology.

INFORMATION
Name of the product Circular
Model name CR-50E
Purpose Special cleaning equipment for industrial piping and heat exchangers
Characteristics Air pump, large cleaning equipment, and chemical tank separately
Applied to ndustrial piping, heat exchanger, cooling water piping,pure piping, chillers, etc.
Scope of application Pipe Diameter 40~250mm
Features

New Technology Bubble Jet Cleaning Method Applied Products

3 to 5 times greater cleaning power than conventional drugcirculation cleaning

30% to50 % less cleaning agents, 1/2 less cleaning time

Manufacturer

Learn more about Bubble Jet CIP Cleaning

SPECIFICATION
Pump type 3Phase vertical pump
Max flow rate 340L/min
Max Head 32m
Bubble Jet Pressure 3~5Kgf/㎠
Max temp 60℃
Inlet/Outlet 2“ (50A)
Size W430 X L740 X H910
Weight 68Kg
